eurorack
Video Splitter

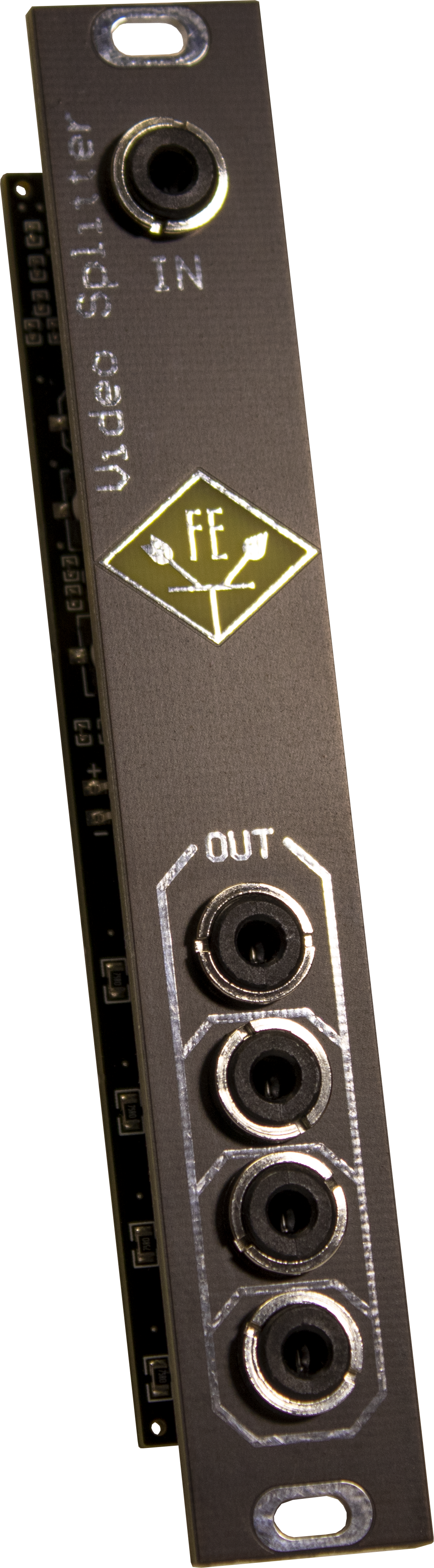

A EuroRack utility for distributing composite video through a patchable setup.
- first production batch
- eurorack
- 3u
- 4hp
- 10-pin power header
- 3.5mm tr i/o
- 1 to 4 active split
about this product
the video splitter is a 1 to 4 active video splitter for eurorack. this module enables you to split one video signal into four independently buffered and isolated signals. this means that, unlike the keychain splitter, you can connect four different equipments, incluiding CRTs or VCRs, without experiencing brigtness drops. any signal modification done to each one of the four outputs wont bleed back to the other ones nor the input at the top. both the input and the four outputs have 75 ohm terminations and are built to accordance with the composite video signal standards.
frequently asked questions
- Is the video splitter a standalone unit?
- The video splitter is intended to be integrated into an eurorack setup. it isn't a handheld device like the mismatcher
- What's the keychain splitter for?
- The keychain splitter is used as a two 4-way splitters.
- What's the rca adapters for?
- The rca adapters are used to connect rca cables directly into the 3.5mm ports.
have another question? contact us on Instagram or e-mail help@freedomenterprise.pt.
